Marshall Trailers

Basic Price:	£5,300.00

Features

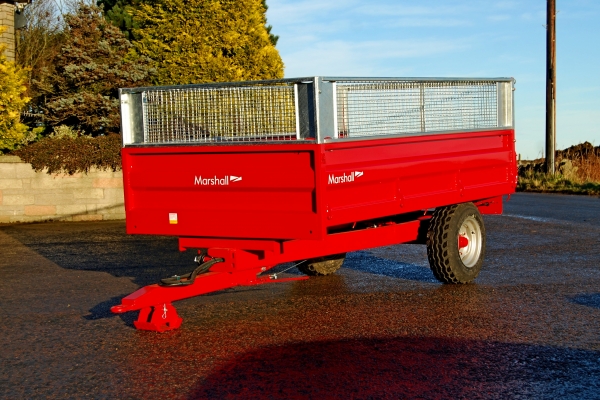

- Mesh Sides – Available on all models; these sides simply bolt on to the trailer. They provide an increased capacity for light loads such as leaves and grass.
- Lighting Arrangement – Lights are standard on our S/4 model upwards and optional on our S/2 model. The standard light units fitted are commercial grade, and sealed to prevent water damage. In addition it is also possible to upgrade to LED lights and LED beacons are available as an option for all models.
- Pressed Panel Construction – This production technique increases strength and rigidity without adding significant weight, ensuring that the side panels can safely and easily be handled or removed.
- Fixed Headboard – Every trailer in our drop-side range has a fixed headboard as standard. This increases torsional rigidity to reduce flexing when the trailer is being used.
- Fully-braced Hinge Points – Our whole drop-side range uses the same hinge points, which are reinforced to stand up to the constant opening and closing action drop-side trailers have to endure.
- Fully Welded Construction – No compromises are made in the construction of our trailers, with every model utilizing a fully welded construction. This provides two major benefits; the overall durability of the trailer is increased and there is less opportunity for water to sit and cause rust.
- Marshall Chassis Design – Our smaller models use a fully-welded channel chassis that provides unmatched strength while keeping weight down. Our S/85 and S/10 models use a square chassis configuration to improve stability and reduce flexing when loading. In addition our S/10 model also benefits from a further strengthened chassis, which employs an 8mm thick reinforcing plate over the front of the chassis members to provide incredible rigidity.
- Spring Suspension Option – Available on our tandem S/85 and S/10 models as a no-cost option and on our single-axle S/4, S/5 and S/6 models as an optional extra. The benefit of spring suspension is for road-work because it handles uneven surfaces better at speed.
- Axles & Braking – Our Whole drop-side range comes complete with hydraulically operated brakes as standard; the only exception is our S/2 model, which has the option to fit hydraulic brakes. The size of the brakes on our drop-side range are also more then acceptable; providing braking efficiency in excess of the current legal requirements.
- Paint Finish – Since November 2011 we have shot-blasted, this is acknowledged in the paint industry as the best possible method for preparing steel for painting. The shot-blasting creates a profile for the paint to adhere to, improving adhesion and in turn the protection offered to the steel. Our five man team of trained sprayers then use the latest spraying equipment to finish our products with a dual layer paint finish. Every machine is finished with 80 microns of high-build primer and 50 microns of gloss polyurethane; this combination provides excellent protection and a high-quality finish.
- Delivery – Marshall Trailers uses a computerized build system to plan production to ensure that machines are delivered on time. The final stage of delivery is undertake by our two artic lorries, a 7.5ton rigid lorry and a number of other haulage partners.
- Spare Parts – Marshall Trailers has a full selection of spare parts for all our ranges, most of which can be dispatched immediately. In some cases we have spares for machines dating back forty years, which gives you peace of mind when buying a Marshall that you will be properly supported well into the future.
Overview
Features at a Glance
- Large capacity
- Fully welded construction eliminates rust traps
- Fixed headboard (ensures a rigid body)
- Fully braced hinge points (eliminates cracking of material)
- Hydraulic brakes and lights standard (S/4 upwards fulfils both HSE and highway regulations)
- Genuine Marshall Spares – a full collection of spares are available for all models in the range

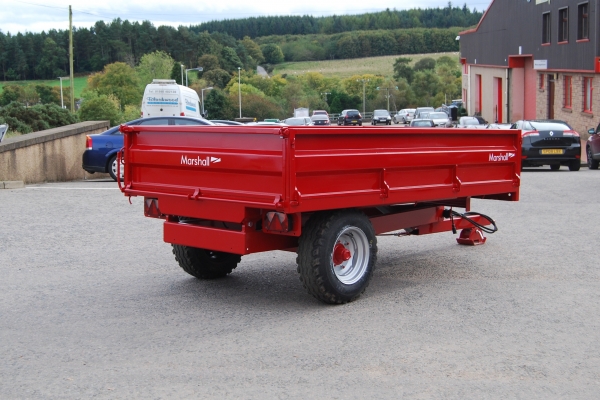

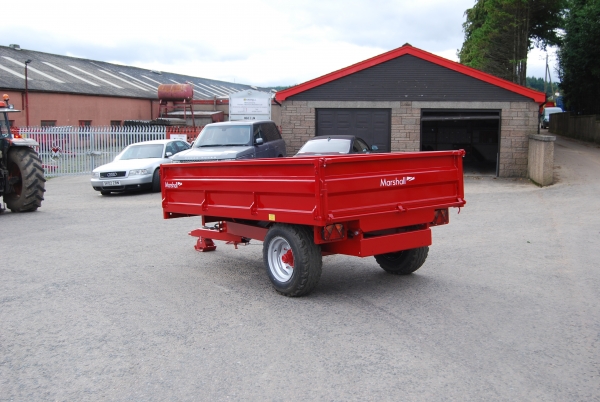

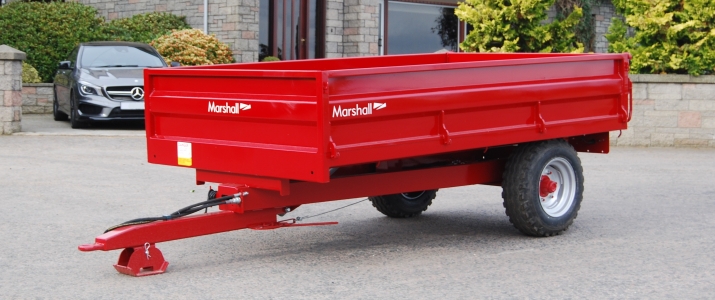

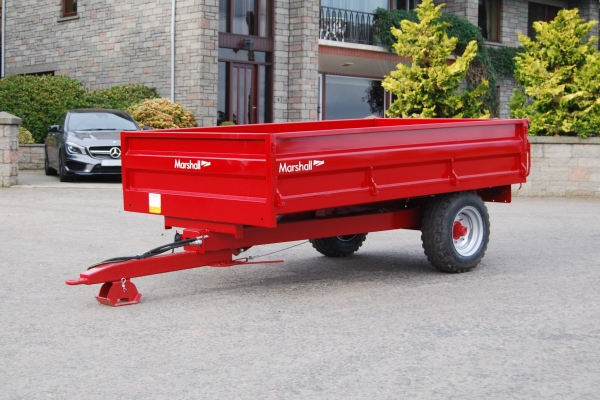

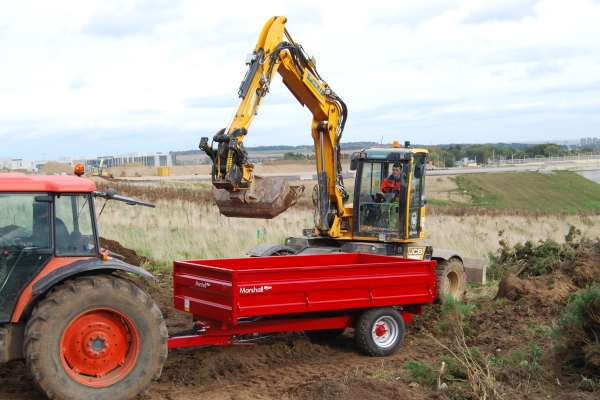

The Marshall S/4 drop side trailer is ideally suited for odd-jobs around the farm or for use in the leisure industry. It provides a useful carrying capacity and heavy-duty design, to ensure it can handle a huge variety of jobs.

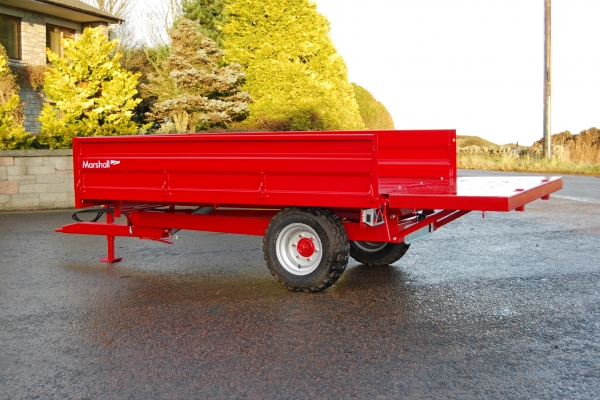

The drop side design provides excellent versatility, allowing the trailer to be used as a flat-bed or a proper trailer. This drastically increases the jobs this trailer can be used for, whether it is moving pallets, small machines, sand or grass; it really can handle all jobs. The S/4 also has the option of mesh sides, which further improves its versatility and makes it ideal for tidying up estate gardens, parks, golf courses or farms.

The body of the S/4 has a 3mm floor and 2.5mm sides, still allowing them to be easily removed if necessary. The hinge points for the sides are also reinforced to prevent cracking or twisting under heavy loads. To improve rigidity the trailer also has a fixed headboard, reducing flexing during loading and transport.

The trailer chassis utilises our tried and tested design developed over 60 years of trailer manufacturing, and provides exceptional strength. The S/4 is also fully-equipped with a hydraulic tipping ram, hydraulic brakes and lights, which means it is ready to be used from the moment it is delivered.

The Marshall S/4 is an extremely versatile trailer that would be a valuable and useful addition to any customer’s range of machinery.

Specification & Prices

	S-1	S-2	S-4	S-5	S-6	S-85	S-10
Basic Price	£2,900	£3,400	£5,300	£6,000	£6,750	£11,250	£15,700
Grain Price	N/A	N/A	N/A	£7,572 / (DF-2.5)	£8,683 / (DF-2.5)	£13,200 / (DF-2.5)	£17,916 (DF-2.5)
Silage Price	N/A	N/A	N/A	£9,494 / (DF-2.5)	£10,852 / (DF-2.5)	£15,620 / (DF-2.5)	£20,606 (DF-2.5)
Body Size - Imperial	6' x 4' x 13"	8' x 5' x 15"	10' x 6' x 18"	10' 6" x 6' 9" - 7' x 21"	12' x 6' 9" - 7' x 21"	14' x 7' 6" - 7' 9" x 24"	16' x 7' 6" - 7' 9" x 24"
Standard Tyre Size	23 x 8.5 x 12	10.0 x 12	10.0 x 15 - 10 ply	12.5 x 15 - 14 ply	12.5 x 15 - 14 ply	12.5 x 15 - 14 ply	385 - 65 x 22.5
Axle	50mm 5 stud	50mm 5 stud	60mm 6 stud	70mm 6 stud	70mm 6 stud	70mm 6 stud Tandem	80mm 8 stud Tandem
Brake	N/A	N/A	250 x 60	300 x 60	300 x 60	300 x 60	350 x 90
Carrying Capacity	1.5 tons	2 tons	4 tons	5 tons	6.5 tons	8.5 tons	10.5 tons
Floor Thickness	2.5mm	2.5mm	3mm	3mm	4mm	4mm	4mm
Side Thickness	2.5mm	2.5mm	2.5mm	2.5mm	2.5mm	2.5mm	2.5mm
Lights	£161 / (DF-1)	£161 / (DF-1)	Standard	Standard	Standard	Standard	Standard
Hyd Brakes	£335 / (DF-1.5)	£335 / (DF-1.5)	Standard	Standard	Standard	Standard	Standard
Side Loading Panels	N/A	N/A	N/A	Standard	Standard	Standard	Standard
Volume Basic	26 cu.ft / 0.74 cu.mtrs	50 cu.ft / 1.41 cu.mtrs	90 cu.ft / 2.55 cu.mtrs	128 cu.ft / 3.62 cu.mtrs	147 cu.ft / 4.16 cu.mtrs	216 cu.ft / 6.1 cu.mtrs	248 cu.ft / 7.0 cu.mtrs
Volume Grain	N/A	N/A	N/A	238 cu.ft / 6.7 cu.mtrs	273 cu.ft / 7.7 cu.mtrs	434 cu.ft / 12.2 cu.mtrs	496 cu.ft / 18.3 cu.mtrs
Volume Silage	N/A	N/A	N/A	457 cu.ft / 13 cu.mtrs	525 cu.ft / 14.8 cu.mtrs	704 cu.ft / 18.4 cu.mtrs	930 cu.ft / 21.06 cu.mtrs
Basic Trailer Weight	340 kgs	460 kgs	840 kgs	1100 kgs	1360 kgs	2310 kgs	3400 kgs
Loading Height Basic	40" / 1.02m	45"/1.14m	52"/1.32m	58"/1.47m	60"/1.52m	65"/1.65m	71"/1.80m
Tipping Mechanism	Single Hydraulic Ram	Single Hydraulic Ram	Single Hydraulic Ram	Single Hydraulic Ram	Single Hydraulic Ram	Twin Hydraulic Rams	Single 5 Stage Hydraulic Ram
OPTIONAL EQUIPMENT
26.0 x 12	£385 / (DF-0.5)	£385 / (DF-0.5)	N/A	N/A	N/A	N/A	N/A
12.5 x 15	N/A	N/A	£190 / (DF-0.5)	Standard	Standard	Standard	N/A
340 x 65 x 18 Radial	N/A	N/A	N/A	£998 / (DF-0.5)	£998 / (DF-0.5)	£1996 / (DF-1)	N/A
400-60 x 15.5	N/A	N/A	£530 / (DF-0.5)	£420 / (DF-0.5)	£420 / (DF-0.5)	£840 / (DF-1)	N/A
550-45 x 22.5	N/A	N/A	N/A	N/A	N/A	N/A	£1,840 / (DF-1)
8 inch Hatch	N/A	N/A	N/A	£185	£185	£185	£185
12 inch Hatch	N/A	N/A	N/A	N/A	N/A	£228	£228
12 inch Hatch with Sock	N/A	N/A	N/A	N/A	N/A	£295	£295
Spring Drawbar (Adjustable)	N/A	N/A	N/A	N/A	N/A	£845	£845
Swivel Hitch	N/A	N/A	N/A	N/A	N/A	N/A	£195
Bale Extension	N/A	N/A	N/A	£489 / (DF-1)	£489 / (DF-1)	£760 / (DF-1)	£760 / (DF-1)
Harvest Ladders - Galvanized (pair)	N/A	N/A	N/A	£410 / (DF-0.25)	£410 / (DF-0.25)	£410 / (DF-0.25)	£410 / (DF-0.25)
Springs for Single Axle	N/A	N/A	£480	£480	£510	N/A	N/A
Trailer Cover (640g PVC)	£205 / (DF-0.25)	£205 / (DF-0.25)	£205 / (DF-0.25)	£205 / (DF-0.25)	£205 / (DF-0.25)	£217 / (DF-0.25)	£267 / (DF-0.25)
LED Beacon	£145 / (DF-0.25)	£145 / (DF-0.25)	£145 / (DF-0.25)	£145 / (DF-0.25)	£145 / (DF-0.25)	£145 / (DF-0.25)	£145 / (DF-0.25)
LED Tail Lights	£326 / (DF-1)	£326 / (DF-1)	£175 / (DF-0.5)	£175 / (DF-0.5)	£175 / (DF-0.5)	Standard	Standard
10 Stud Commercial Axle	N/A	N/A	N/A	N/A	N/A	N/A	£1,364
10 Stud Commercial Axle c/w ABS Brakes	N/A	N/A	N/A	N/A	N/A	N/A	£4,620
Air / Oil Brakes (non ABS) c/w Load Sensing	N/A	N/A	N/A	N/A	N/A	£1,517 (DF-4)	£1,517 (DF-4)
Oil Load Sensing	N/A	N/A	N/A	N/A	N/A	£750 / (DF-2)	£750 / (DF-2)
18" Mesh Sides	£491 / (DF-1.5)	£491 / (DF-1.5)	£606 / (DF-1.5)	£664 / (DF-1.5)	£664 / (DF-1.5)	£722 / (DF-1.5)	£722 / (DF-1.5)
Rear Tow Hitch c/w Lights & Brakes	N/A	N/A	N/A	N/A	N/A	425 / (DF-2)	£325 / (DF-2)
Jack Screw in lieu of Skid	Standard	Standard	£174 (DF-0.5)	£174 (DF-0.5)	£174 (DF-0.5)	£174 (DF-0.5)	£174 (DF-0.5)
Rear Ramps (Aluminium)	£850 / (DF-0.25)	£850 / (DF-0.25)	£1700 / (DF-0.25)	£1700 / (DF-0.25)	£1700 / (DF-0.25)	£1700 / (DF-0.25)	£1700 / (DF-0.25)

Owners Info
- Tyre Pressure Chart
  Download
- Fitting Instructions - Drop-side Trailer Bale Extensions
  Download
- Trailers Instruction Manual
  Download
- Drop-side Range - Specification Chart
  Download
- Marshall Brochure 2024
  Download
- Marshall Logo - JPEG Format
  Download
- Order Drop-Side Agricultural Trailers spares online
  Read more
- Additional Equipment for this machine
  Read more
FAQ's
- What are the current regulations on agricultural trailer brakes?
  Read more

  What are the current regulations on agricultural trailer brakes?

  The law currently states that trailers travelling below 25mph have to have a braking efficiency of at least 25% (UK Road Vehicle Construction & Use Regulations). Above this speed it is unclear exactly what requirements an agricultural trailer has to meet, whether it is commercial braking requirements or still simply a 25% braking efficiency.

  There is currently EU legislation under discussion which would implement a 50% braking efficiency for agricultural trailers, but this has been already been debated for a number of years without it becoming law. It seems unlikely that it will be implemented within the next few years, if ever, since this would impose higher braking standards than required on commercial vehicles.

  Marshall products are fitted with hydraulic brakes as standard and on average provide a braking efficiency of 35%, which exceeds the current legal requirements. This impressive baseline performance is achieved by fitting high quality axles supplied by the world’s leading axle manufacturer, combined with enlarged 25mm brake cylinders and durable 2 wire hoses.

  Take time to examine the specifications of our models and take note of the brake sizes and axles sizes. In particular notice we fit commercial 420 x 180 10 stud axles as standard on our QM/14, QM/16, QM/1600 and QM1800 models; not 10 stud industrial axles, which provide significantly reduced performance. The way to tell the difference between these axles is a commercial axle uses an S-cam brake rode while an industrial axle uses a flat-cam brake rod.

  If a customer requires enhanced braking performance we also offer air brakes with loading sensing, full ABS systems and a number of axle upgrades. This guarantees a Marshall trailer can meet current legal requirements now and any EU legislation that could potentially be introduced in the future.
Additional Equipment Extra
- Springs for Single Axle

  Part No.
  0603-2

  £480.00

  Improves trailer ride off-road and on the road.
- No Wheels

  Part No.
  0000

  £0.00

  Removes the standard wheel option so the machine is supplied without wheels.
- 12.5 x 15 (6 Stud) Wheels

  Part No.
  0006-2

  Dealer Fit - 1hrs

  £190.00

  These tyres reduce the ground compaction of the machine and offer a slight improvement during road use. Please note all prices are in place of standard tyres.
- 340-65x18 (6 Stud) Wheels

  Part No.
  0040-3

  Dealer Fit - 0.5hrs

  £822.00

  These tyres also known as "minature super singles" and are excellent for extensive road use. Please note all prices are in place of standard tyres.

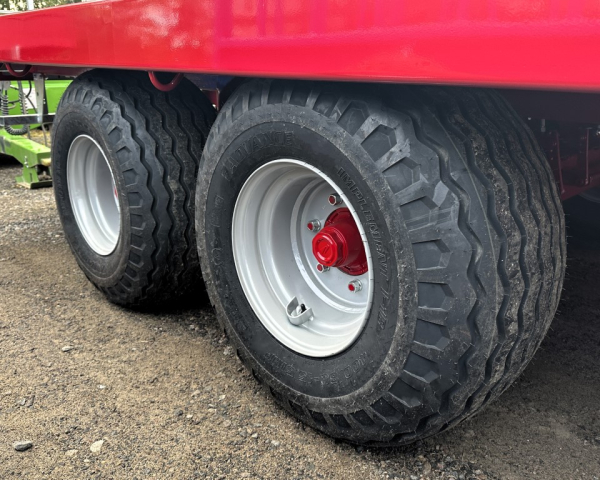

- 400-60x15.5 (6 Stud) Wheels

  Part No.
  0042-3

  Dealer Fit - 0.5hrs

  £530.00

  These tyres significantly reduce ground compaction, and are ideal in wet conditions or for use in the groundcare industry. Please note all prices are in place of standard tyres.
- Mudflaps

  Part No.
  1401-1

  Dealer Fit - 1hrs

  £85.00

  Reduces spray and dirt from the road hitting the underside of the trailer body.

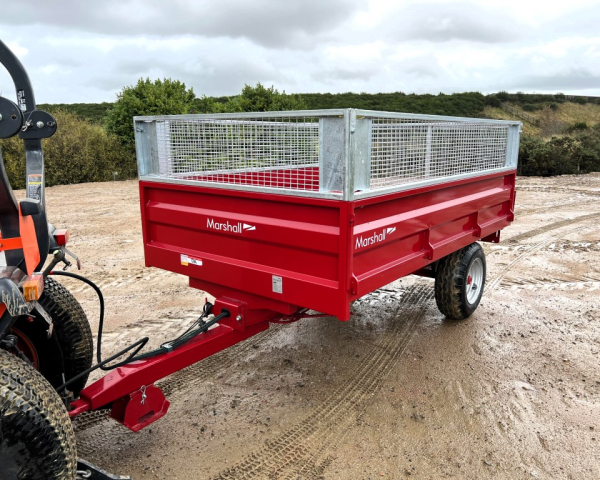

- 18" Mesh Sides

  Part No.
  0502-3

  Dealer Fit - 1.5hrs

  £606.00

  An ideal attachment for a trailer in the leisure industry or used for odd-jobs on the farm.
- Hitch Lock

  Part No.
  1203

  Dealer Fit - 0.25hrs

  £98.00

  Allows the machine to be secured against theft. Padlock is not included.
- Bale Extension - 3ft

  Part No.
  0901

  Dealer Fit - 1hrs

  £489.00

  Increases the length of trailer bed for use with bales.
- Harvest Ladders (S)

  Part No.
  1005

  Dealer Fit - 0.25hrs

  £416.00

  Harvest ladders can be added for transporting bales.
- Trailer Cover

  Part No.
  1601-7

  Dealer Fit - 0.25hrs

  £205.00

  A simple 640g PVC cover to protect grain or other valuable loads.
- Rear Ramps

  Part No.
  2601-1

  Dealer Fit - 0.25hrs

  £1,700.00

  6.8-ton capacity aluminium ramps to allow loading and unloading of small machines.
- Jack Screw in Lieu Skid

  Part No.
  2702-3

  Dealer Fit - 0.5hrs

  £174.00

  An essential for using machine with tractors without a pickup hitch.
- LED Lights

  Part No.
  2405-3

  Dealer Fit - 1hrs

  £205.00

  Improved visibility of the machine and reduces maintenance of lights.
- Number Plate Bracket & Light

  Part No.
  2402

  Dealer Fit - 1hrs

  £75.00

  Allows your number plate to be easily changed.
- LED Beacon

  Part No.
  2404-2

  Dealer Fit - 1hrs

  £145.00

  Ideal if the machine is frequently used on the road.
- Colour - Marshall Blue

  Part No.
  2501

  £0.00

  Bespoke colour option, allowing customer to customise the trailer.
- Colour - Maserati Blue

  Part No.
  2502

  £375.00

  Bespoke colour option, allowing customer to customise the trailer.
- Colour - John Deere Green

  Part No.
  2503-2

  £375.00

  Bespoke colour option, allowing customer to customise the trailer.
- Colour - Claas Green

  Part No.
  2504

  £375.00

  Bespoke colour option, allowing customer to customise the trailer.
- Colour - Fendt Green

  Part No.
  2505

  £375.00

  Bespoke colour option, allowing customer to customise the trailer.
- Colour - Gloss Black

  Part No.
  2506

  £375.00

  Bespoke colour option, allowing customer to customise the trailer.
- Colour - Ferrari Red

  Part No.
  2507

  £375.00

  Bespoke colour option, allowing customer to customise the trailer.
- Colour - Case Red

  Part No.
  2508

  £375.00

  Bespoke colour option, allowing customer to customise the trailer.
- Colour - Kubota Orange

  Part No.
  2509

  £375.00

  Bespoke colour option, allowing customer to customise the trailer.
- Colour - JCB Yellow

  Part No.
  2510

  £375.00

  Bespoke colour option, allowing customer to customise the trailer.
- Colour -Highway/Traffic Yellow

  Part No.
  2511

  £375.00

  Bespoke colour option, allowing customer to customise the trailer.
- Colour - White

  Part No.
  2512

  £375.00

  Bespoke colour option, allowing customer to customise the trailer.
- Colour - Gunmetal Grey

  Part No.
  2513

  £375.00

  Bespoke colour option, allowing customer to customise the trailer.
- Delivery

  Part No.
  9998

  £350.00

  Delivery charge to any UK mainland address.
