Features
-
BC Chassis Design – Every model benefits from heavy-duty channels to form a square chassis design that improves rigidity and reduces flexing during loading.
-
BC Bed Design – The entire range have non-slip chequered plate steel floors. The floor bearers are constructed from box-section and interlocked into the 6mm pressed side-rail to improve strength and remove any places where water could sit.
-
21" Fixed Headboard – Standard on all models, except our BC/18, this also dramatically increases the rigidity of the trailer.
-
Harvest Ladders – Standard front and rear ladders on all models, with a galvanized finish to provide effective protection. The rear ladders on all models are adjustable from a straight to an angled position to accommodate different types of bales.
-
Rope Hooks & Ratchet Strap Points – Every model has heavy duty 5/8" rope hooks along each side and at both the front and the back. The side rails of the entire range are also folded from 6mm steel plate with dedicated ratchet strap points to meet the required legislation.
-
BC Lighting Arrangement – Every model ha sealed commercial quality light units that are recessed into the back rail of the trailer to improve protection. LED front marker lights are also a standard feature on all models.
-

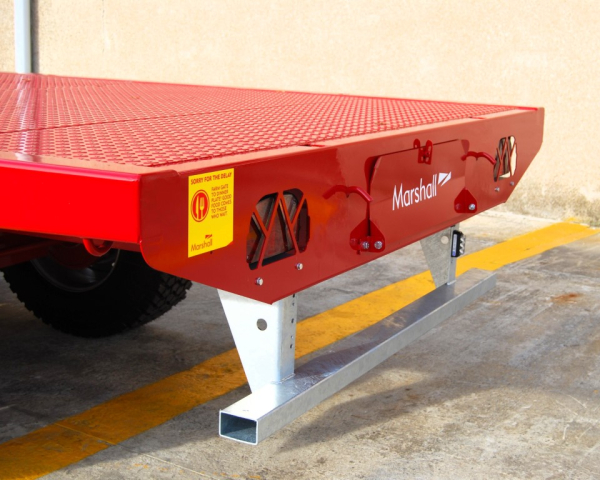

Rear Crash Barrier – Standard on all models the crash barrier is formed from box section and can be folded away or removed if preferable.
-
BC Suspension – The normal suspension offered on our bale trailer range is our split-oscillating suspension, which reduces lateral movement and improves stability of high loads. Spring suspension, if preferred, is also available for high-speed road work as a no-cost option.
-
BC Axles & Braking – The standard axles on all our models are more than adequate for most jobs. However commercial 10 stud axles can be specified to provide high-speed performance and enhanced braking.
-
BC Tyres – It is possible to upgrade the tyres on our entire BC range to better handle different jobs. Tyres available include miniature super-singles, low and wide 445-45x19.5 tyres to reduce the bed height and a variety of floatation tyres. All tyre options can be "dealer fitted" except the low profile 445-45 x 19.5 or 355/50 x 22.5 tyres.
-

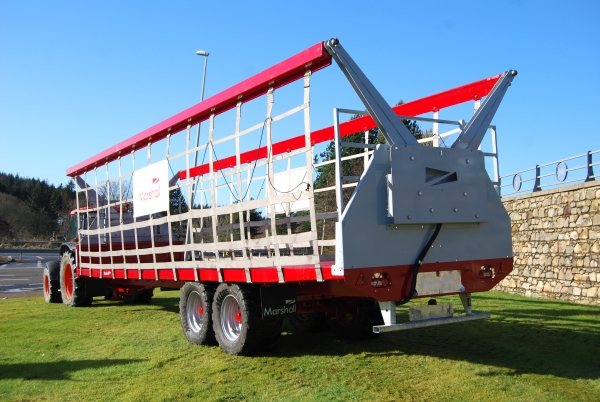

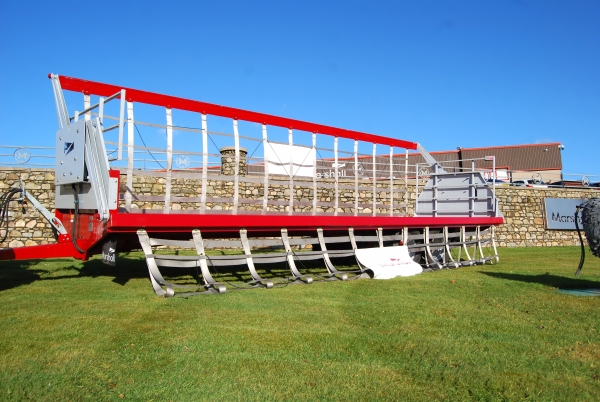

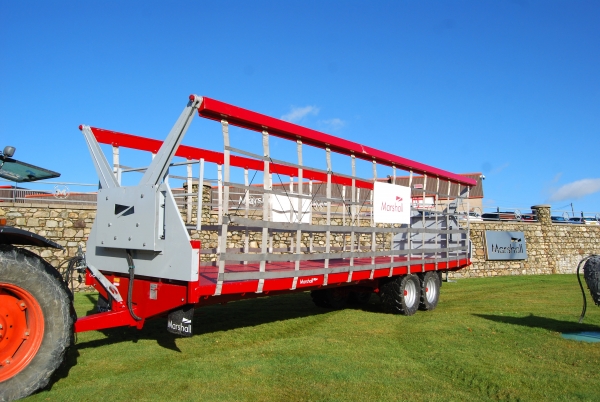

Easy Secure System – The Marshall Easy Secure System fits BC-25-12T models upwards and can be used for a variety of loads from bales to fertiliser bags and boxes. The system incorporates two hydraulically lifted bars that pull a pair of securing nets into place on either side of the trailer, reducing the need for strapping and further tying down of cargo. There are a number of benefits to this design, using nets instead of complicated steel frames reduces the chance of damage, the nets fold together when in the lowered position so the trailer can be moved or un-hitched, and the system works with more than just bales.
-
Paint Finish – Since November 2011 we have shot-blasted, this is acknowledged in the paint industry as the best possible method for preparing steel for painting. The shot-blasting creates a profile for the paint to adhere to, improving adhesion and in turn the protection offered to the steel. Our five man team of trained sprayers then use the latest spraying equipment to finish our products with a dual layer paint finish. Every machine is finished with 80 microns of high-build primer and 50 microns of gloss polyurethane; this combination provides excellent protection and a high-quality finish.
-
Delivery – Marshall Trailers uses a computerized build system to plan production to ensure that machines are delivered on time. The final stage of delivery is undertake by our two artic lorries, a 7.5ton rigid lorry and a number of other haulage partners.
-
Spare Parts – Marshall Trailers has a full selection of spare parts for all our ranges, most of which can be dispatched immediately. In some cases we have spares for machines dating back forty years, which gives you peace of mind when buying a Marshall that you will be properly supported well into the future.
-
-
Overview
Features at a Glance
- Durabar non slip floor
- 6mm folded side rails complete with 5/8" rope hooks and dedicated ratchet strap points
- Rolled chanel, square design chassis (eliminates the potential of material fatigue due to flexing)
- Rigid 21” fixed headboard (allows harvest ladders to be held rigidly and increases overall rigidity)
- Standard galvanized harvest ladders, with an adjustable rear ladder.
- Standard spring drawbar provides a smooth ride for the operator.
- The quality split oscillating rocker tandem with its Devlon bushes only adds to the overall level of stability required for this type of work; spring suspension is also offered as a no cost option
- "Dealer Fit Ready" - the trailer is designed to allow 80% of the optional extras to be retrofitted.
- Genuine Marshall Spares – a full collection of spares are available for all models in the range

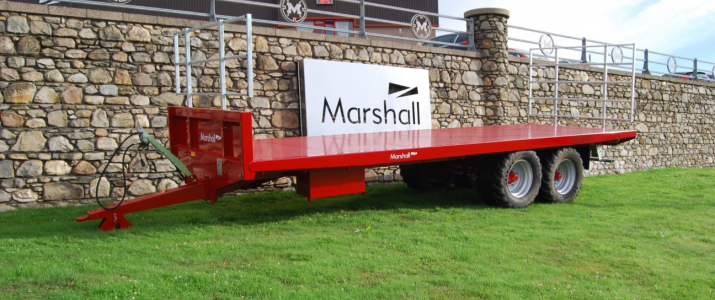

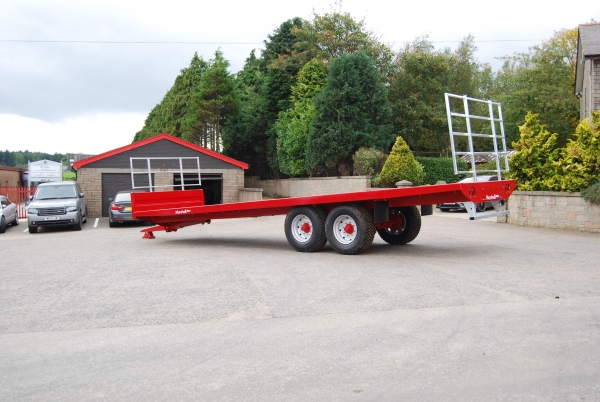

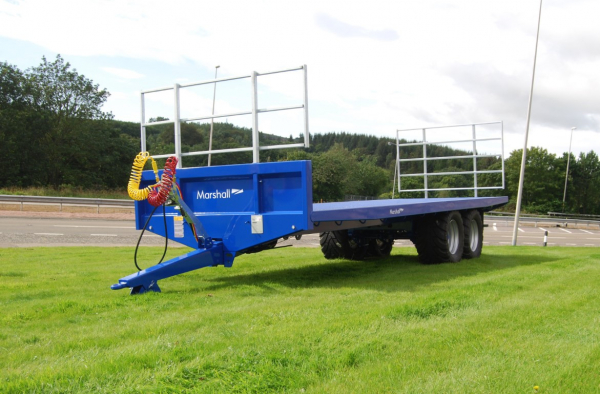

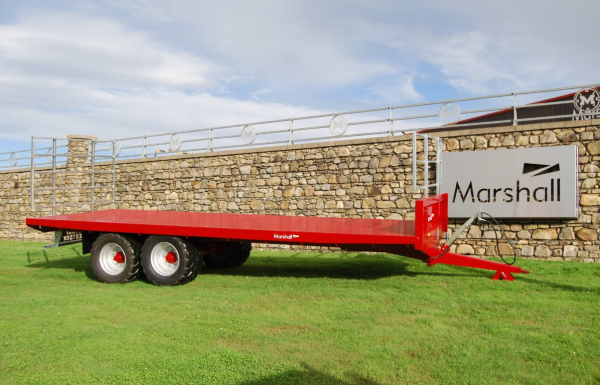

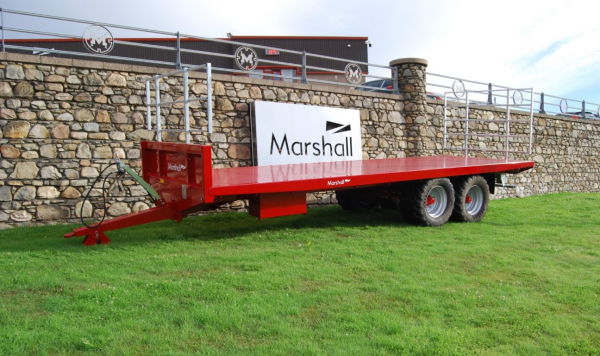

The Marshall BC/28 has generous capacity that makes transporting a large volume of bales or potato boxes an easy task. This coupled with the excellent Marshall build quality means the customer has a winning formula.
It has box section bearers and runners which provides exceptional strength and prevents water from prematurely rusting the trailer. The strength of the trailer is further enhanced by heavy-duty channels forming a square chassis that extends the length of the trailer and also reduces flexing when loading the trailer. Another standard feature that also helps deal with flexing when loading is the 21” headboard, which improves the overall rigidity of the trailer. The BC/28 uses 8 stud tandem axles as standard and can either be configured with springs or split oscillating rocker tandems as a no cost option.
The standard floor on a BC/28 is a 4mm durabar floor that significantly reduces the potential for loads to move during transport. In addition to this Marshalls also offers a 30mm treated pine floor for customers who prefer a more traditional design.
The BC/28 also comes with harvest ladders as standard, ensuring it is capable of carrying all types of load safely from the moment it is purchased. The harvest ladders are galvanised as standard to ensure they do not rust if left outside when not in use. The rear ladder is also adjustable and can be positioned straight or angled depending on the type of bales. On top of this all Marshall bale trailers have hydraulic brakes and lights as standard to comply with all the necessary health and safety legislation. Finally the BC/28 also includes a spring drawbar as standard, which provides a smooth ride for the tractor operator and prevents the tractor bouncing.
The BC/28 gives customers a well-engineered trailer that can tackle the largest jobs with ease.
-
Specification & Prices
BC-21 BC-25-10T BC-25-12T BC-28 BC-32-TAN BC-32-TRI BC-36-TAN BC-36-TRI Price £9,650 £10,500 £12,803 £14,390 £15,550 £19,500 £19,486 £22,182 Body Size 21' x 8' / 6.40m x 2.43m 25' x 8' / 7.62m x 2.43m 25' x 8' 4" / 7.62m x 2.54m 28' x 8' 4" / 8.53m x 2.54m 32' x 8' 4" / 9.75m x 2.54m 32' x 8' 4" / 9.75m x 2.54m 36' x 8' 4" / 10.97m x 2.54m 36' x 8' 4" / 10.97m x 2.54m Standard Tyre Size 12.5 x 15 - 14 ply 12.5 x 15 - 14 ply 385 - 65 x 22.5 385 - 65 x 22.5 385 - 65 x 22.5 385 - 65 x 22.5 385 - 65 x 22.5 385 - 65 x 22.5 Axle 70mm 6 stud Tandem 70mm 6 stud Tandem 80mm 8 stud Tandem 80mm 8 stud Tandem 80mm 8 stud Tandem 90mm 10 stud Tridem 10 stud 120mm High Speed Commercial 10 stud 120mm High Speed Commercial Brakes 300 x 60 300 x 60 350 x 90 350 x 90 350 x 90 406 x 120 420 x 180 420 x 180 Carrying Capacity 10 tons 10 tons 12 tons 14 tons 14 tons 16 tons 16 tons 16 tons Floor Thickness (Steel) Durabar 4mm 4mm 4mm 4mm 4mm 4mm 4mm 4mm Lights & Hyd Brakes Standard Standard Standard Standard Standard Standard Standard Standard Headboard Standard - 21" Standard - 21" Standard - 21" Standard - 21" Standard - 21" Standard - 21" Standard - 21" Standard - 21" Harvest Ladders - Galvanised Front & Adjustable Rear Standard Front & Adjustable Rear Standard Front & Adjustable Rear Standard Front & Adjustable Rear Standard Front & Adjustable Rear Standard Front & Adjustable Rear Standard Front & Adjustable Rear Standard Front & Adjustable Rear Standard Unladen Weight 2030 kgs 2340 kgs 3320 kgs 3840 kgs 4075 kgs 4475 kgs 4935 kgs 5335 kgs Loading Height 38" / 0.96m 39" / 0.99m 47" / 1.19m 47" / 1.19m 47" / 1.19m 47" / 1.19m 47" / 1.19m 47" / 1.19m Chassis Members 200mm PFC 200mm PFC UPN 260mm UPN 260mm UPN 300mm UPN 300mm UPN 300mm UPN 300mm OPTIONAL EQUIPMENT 400-60 x 15.5 £840 / (DF-1) £840 / (DF-1) N/A N/A N/A N/A N/A N/A 340 x 65 x 18 Radial £1996 / (DF-1) £1996 / (DF-1) N/A N/A N/A N/A N/A N/A 385 - 65 x 22.5 fitted to 8 stud £2,974 N/A Standard Standard Standard Standard Standard Standard 445 x 45 x 19.5 (Lowers bed height by 150mm) N/A N/A £1,360 £1,360 £1,360 £2,040 £1,360 £2,040 550-45 x 22.5 N/A N/A £1,840 / (DF-1) £1,840 / (DF-1) £1,840 / (DF-1) £2,760 / (DF-1.5) £1,840 / (DF-1) £2,760 / (DF-1.5) 560-45 x 22.5 N/A N/A £2,530 / (DF-1) £2,530 / (DF-1) £2,530 / (DF-1) £3,795 / (DF-1.5) £2,530 / (DF-1) £3,795 / (DF-1.5) 560-60 x 22.5 c/w 10 stud 420 x 180 Axles N/A N/A N/A N/A £4,594 N/A £3,180 / (DF-1) £4,770 / (DF-1.5) Front Mudflaps £95 / (DF-1) £95 / (DF-1) £95 / (DF-1) £95 / (DF-1) £95 / (DF-1) £95 / (DF-1) £95 / (DF-1) £95 / (DF-1) Spring Drawbar £845 £845 £845 Standard Standard Standard Standard Standard LED Beacon £145 / (DF-0.25) £145 / (DF-0.25) £145 / (DF-0.25) £145 / (DF-0.25) £145 / (DF-0.25) £145 / (DF-0.25) £145 / (DF-0.25) £145 / (DF-0.25) Rear Tool Box £120 / (DF-1) £120 / (DF-1) £120 / (DF-1) £120 / (DF-1) £120 / (DF-1) £120 / (DF-1) £120 / (DF-1) £120 / (DF-1) LED Tail Light Standard Standard Standard Standard Standard Standard Standard Standard 10 Stud Commercial Axle 406 x120 N/A N/A £1,364 £1,364 £1,364 Standard N/A N/A 10 Stud Commercial Axle c/w ABS Brakes N/A N/A £4,620 £4,620 £4,620 £3258 / (DF-6) £3108 / (DF-6) £3258 / (DF-6) Air/Oil Brakes c/w Load Sensing £1,517 (DF-4) £1,517 (DF-4) £1,517 (DF-4) £1,517 (DF-4) £1,517 (DF-4) £1,727 (DF-4) £1,517 (DF-4) £1,727 (DF-4) Oil Load Sensing £750 (DF-2) £750 (DF-2) £750 (DF-2) £750 (DF-2) £750 (DF-2) £750 (DF-2) £750 (DF-2) £750 (DF-2) Rear Box Pusher £850 / (DF-2.5) £850 / (DF-2.5) £850 / (DF-2.5) £850 / (DF-2.5) £850 / (DF-2.5) £850 / (DF-2.5) £850 / (DF-2.5) £850 / (DF-2.5) Hydraulic Side Walkway (per side) N/A £1462 (DF-5) £1462 (DF-5) N/A £1462 (DF-5) £1462 (DF-5) £1462 (DF-5) £1462 (DF-5) Easy Secure System N/A N/A £7,100 (DF-12) £7,200 (DF-12) £7,300 (DF-12) £7,300 (DF-12) £7,900 (DF-12) £7,900 (DF-12) Rear Ramps (Aluminium) £1700 / (DF-0.25) £1700 / (DF-0.25) £1700 / (DF-0.25) £1700 / (DF-0.25) £1700 / (DF-0.25) £1700 / (DF-0.25) £1700 / (DF-0.25) £1700 / (DF-0.25) Extra Foot of Flooring £250 £250 £250 £250 £250 £250 N/A N/A - Owners Info
-
FAQ's
-
What are the current regulations on agricultural trailer brakes?
Read moreWhat are the current regulations on agricultural trailer brakes?
The law currently states that trailers travelling below 25mph have to have a braking efficiency of at least 25% (UK Road Vehicle Construction & Use Regulations). Above this speed it is unclear exactly what requirements an agricultural trailer has to meet, whether it is commercial braking requirements or still simply a 25% braking efficiency.
There is currently EU legislation under discussion which would implement a 50% braking efficiency for agricultural trailers, but this has been already been debated for a number of years without it becoming law. It seems unlikely that it will be implemented within the next few years, if ever, since this would impose higher braking standards than required on commercial vehicles.
Marshall products are fitted with hydraulic brakes as standard and on average provide a braking efficiency of 35%, which exceeds the current legal requirements. This impressive baseline performance is achieved by fitting high quality axles supplied by the world’s leading axle manufacturer, combined with enlarged 25mm brake cylinders and durable 2 wire hoses.
Take time to examine the specifications of our models and take note of the brake sizes and axles sizes. In particular notice we fit commercial 420 x 180 10 stud axles as standard on our QM/14, QM/16, QM/1600 and QM1800 models; not 10 stud industrial axles, which provide significantly reduced performance. The way to tell the difference between these axles is a commercial axle uses an S-cam brake rode while an industrial axle uses a flat-cam brake rod.
If a customer requires enhanced braking performance we also offer air brakes with loading sensing, full ABS systems and a number of axle upgrades. This guarantees a Marshall trailer can meet current legal requirements now and any EU legislation that could potentially be introduced in the future.
-
What is the best running gear; rockers or springs?
Read moreWhat is the best running gear; rockers or springs?
This is a question we are constantly asked by customers since the type of running gear will have a huge effect on how the machine performs. There is no definitive answer on which suspension system is better since they both have their own benefits and drawbacks.
Split oscillating suspension or rockers as it is better known is ideal for machines that will carry high, potentially unstable loads as it eliminates lateral movement of the trailer ensuring the load can be safely transported. Crucially this is benefit is not achieved at the expense of ride quality since the tandems are still able move vertically and therefore allow the trailer to travel smoothly over rough ground. The stability of rockers makes them ideal on bale trailers, which are constantly transporting high loads, or on trailers working on steep ground.
Marshalls rocking beams are all extremely heavy-duty, and are produced on site by our skilled engineers. In addition to the robust design, all our tandems utilise devlon bushes, which significantly reduces wear and prolongs the life of the rockers.
The alternative to rockers is spring suspension, which is predominantly used on trailers carrying out a lot of road work. Springs provide an extremely smooth ride and perform better than rockers can on the road, particularly at higher speeds. This type of suspension also allows air brakes with load sensing to be fitted; automatic load sensing does not work on rocker tandem suspension. However the main disadvantage of springs is that they do allow lateral movement of the trailer, making them less stable on steep slopes or with higher loads.
Whatever suspension set-up you prefer Marshalls offers either as a no-cost option, ensuring your next Marshall will be exactly what you want.
-
-
Additional Equipment
Extra
-
Springs
No-cost Option. Provides excellent performance on the road.
-
Rockers
No-cost Option. Reduces lateral movement making high-loads more stable.
-
10 Stud Axle - 90mm(406x120)
Provides enhanced braking and is suitable for 50km/h+, ideal if the machine is frequently used on the road. Please note price is for a pair of axles in lieu of 8 stud axles.
-
10 Stud Axle - 120mm(420x180)
Provides enhanced braking and is suitable for 50km/h+, ideal if the machine is frequently used on the road. Please note price is for a pair of axles in lieu of 8 stud axles.
-
No Wheels
Removes the standard wheel option so the machine is supplied without wheels.
-
355-50 x 22.5 (10 Stud) Low Wh
Part No.
0010-1Dealer Fit - 1hrs
£880.00
These tyres provide excellent road performance and reduce the bed height of bale trailers by 150mm and 75mm on other models. Please note these tyres are "recapped" tyres so the tyre sidewall brands may vary and all prices are in place of standard tyres.
-
NEW 385-65 x 22.5 (10 Stud)
Part No.
0015-1Dealer Fit - 1hrs
£480.00
These tyres are brand new tyres that will stand up to extreme road work. They have a carrying capacity of 4.5-tons and are K-rated (110km/h).
-
550-45 x 22.5 (8 Stud) Wheels
Part No.
0019-1Dealer Fit - 1hrs
£1,840.00
These tyres are excellent in wet conditions and significantly reduce the ground compaction of the machine; ideal if the machine is predominantly used off-road. This price includes the necessary mudguards. Please note all prices are in place of standard tyres.
-
550-45 x 22.5 (10 Stud) Wheels
Part No.
0020-1Dealer Fit - 1hrs
£1,840.00
These tyres are excellent in wet conditions and significantly reduce the ground compaction of the machine; ideal if the machine is predominantly used off-road. This price includes the necessary mudguards. Please note all prices are in place of standard tyres.
-
560-45 x 22.5 (8 Stud) Wheels
These tyres excell at both on road performance and off-road performance and are the best all-round tyres we offer. This price includes the necessary mudguards. Please note all prices are in place of standard tyres.
-
560-45 x 22.5 (10 Stud) Wheels
These tyres excell at both on road performance and off-road performance and are the best all-round tyres we offer. This price includes the necessary mudguards. Please note all prices are in place of standard tyres.
-
445-45 x 19.5 (8 Stud) Low Wh
Part No.
0025Dealer Fit - 1hrs
£1,360.00
These tyres are similar to HGV tyres, and give fantastic performance on the road. In addition they lower the bed height of our bale trailers by 150mm or 75mm on other models, improving stability when moving bales or when a livestock container is fitted. Please note all prices are in place of standard tyres.
-
445-45 x 19.5 (10 Stud) Low Wh
Part No.
0026-1Dealer Fit - 1hrs
£1,360.00
These tyres are similar to HGV tyres, and give fantastic performance on the road. In addition they lower the bed height of our bale trailers by 150mm or 75mm on other models, improving stability when moving bales or when a livestock container is fitted. Please note all prices are in place of standard tyres.
-
Front Mudflaps
Part No.
1402Dealer Fit - 1hrs
£95.00
Reduces spray and dirt from the road hitting the underside of the trailer body.
-
Air/Oil Brakes c/w Load Sensin
Ideal if the machine is frequently used on the road, provides improved braking for higher speeds. Automatic load sensing available on springs & manual load sensing available on rockers.
-
Oil Brakes Load Sensing System
Part No.
0204Dealer Fit - 2hrs
£750.00
This optional extra prevents the trailer wheels from locking up by reducing the flow of oil to the brake rams. Only available on spring suspension.
-
ABS & Air Brakes System
Part No.
0205-1Dealer Fit - 6hrs
£3,306.00
Ideal if the machine is frequently used on the road, provides HGV levels of braking. Option includes air brakes and is only available on spring suspension.
-
Ext. Ft of Flooring (BC29)
Bale trailer floor length increased by one foot.
-
One Ft Red. (BC27)
Bale trailer floor length increased by one foot.
-
Rear Tow Hitch - Lights & Hyd
Allows multiple machines to be moved around the farm at once.
-
Hitch Lock
Allows the machine to be secured against theft. Padlock is not included.
-
No Harvest Ladders
The trailer can be ordered with no harvest ladders if they are not required.
-
Harvest Ladders - Str/Ang (BC)
The standard rear harvest ladder can be changed to an angled one, allowing the rear bales to fit better.
-
Harvest Ladders - Str/Bar (BC)
The standard rear harvest ladder can be changed to a round bale bar, allowing the rear bales to fit better.
-

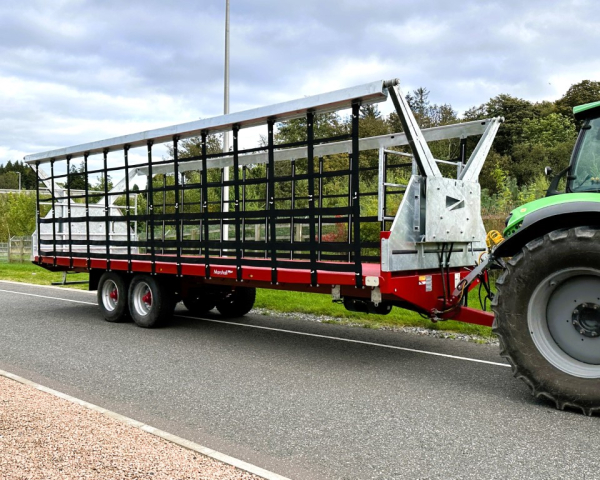

Rear Crash Barrier (Container)
This option is required when mounting a removable livestock container on the trailer.
-
Rear Ramps
6.8-ton capacity aluminium ramps to allow loading and unloading of small machines.
-
Rear Ramp Bar (BC,HD)
Allows ramps to be easily connected to the trailer.
-
Rear Toolbox
An ideal place to keep straps and ropes during journeys. Complete with a strap-winder for tidying up straps quicker.
-
Side Toolbox
An ideal place to keep straps and ropes during journeys.
-
Rear Box Pusher
Useful for ensuring a load of boxes are secured for traveling.
-
Hyd. Side Walkway - Offside
Allows safe access to boxes, during loading.
-
18" Side Posts
Allows pipes and similar loads to be transported securely.
-
Hydraulic Jack
Allows the trailer to be used by tractors without a pick-up hitch. This is a hand-operated hydraulic jack.
-
Rear Tow Points
Part No.
2719£240.00
Allows the trailer to be easily towed out in the event of getting stuck.
-
Easy Secure - Bale Clamp - 2.3m
Allows loads to be quickly secured without the need for straps or ropes. From the bed of the trailer to the top of the securing bar measures 2.3m.
-
Easy Secure - Bale Clamp - 3.1m
Allows loads to be quickly secured without the need for straps or ropes. From the bed of the trailer to the top of the securing bar measures 3.1m.
-
Number Plate Bracket & Light
Allows your number plate to be easily changed.
-
LED Beacon
Ideal if the machine is frequently used on the road.
-

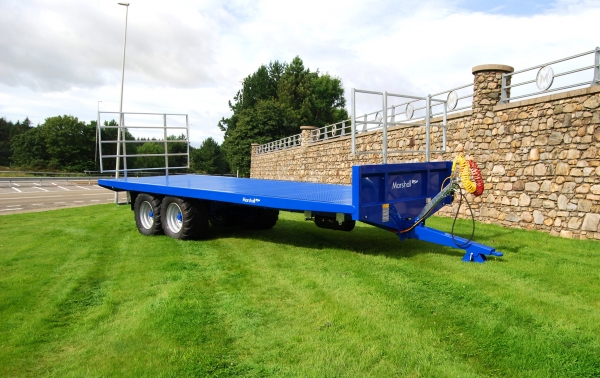

Colour - Marshall Blue
Bespoke colour option, allowing customer to customise the trailer.
-
Colour - Maserati Blue
Bespoke colour option, allowing customer to customise the trailer.
-
Colour - John Deere Green
Bespoke colour option, allowing customer to customise the trailer.
-
Colour - Claas Green
Bespoke colour option, allowing customer to customise the trailer.
-
Colour - Fendt Green
Bespoke colour option, allowing customer to customise the trailer.
-
Colour - Gloss Black
Bespoke colour option, allowing customer to customise the trailer.
-
Colour - Ferrari Red
Bespoke colour option, allowing customer to customise the trailer.
-
Colour - Case Red
Bespoke colour option, allowing customer to customise the trailer.
-
Colour - Kubota Orange
Bespoke colour option, allowing customer to customise the trailer.
-
Colour - JCB Yellow
Bespoke colour option, allowing customer to customise the trailer.
-
Colour -Highway/Traffic Yellow
Bespoke colour option, allowing customer to customise the trailer.
-
Colour - White
Bespoke colour option, allowing customer to customise the trailer.
-
Colour - Gunmetal Grey
Bespoke colour option, allowing customer to customise the trailer.
-

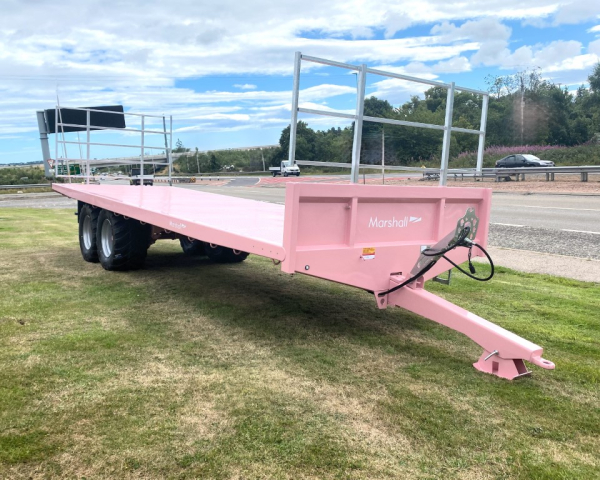

Colour - Pink
Bespoke colour option, allowing customer to customise the trailer.
-
Delivery
Delivery charge to any UK mainland address.
-
