Features
-
Tank Design – Every model has a 6mm thick steel tank that is rolled and fully-welded by a sub-arc welder to ensure a consistent and robust finish. Inside the tank there are baffles to ensure material is transported safely and reinforcing rings to further enhance the tanks strength. It is also important to note that all our tanks hold the stated capacity; even our LGP cut in tanks are increased in size to compensate for the cut-out part. -
Chassis Design – The overall rigidity of our tanker range is boosted by our integral chassis. which supports the tank to reduce fatigue and prevent premature failure. -
ST Axles & Braking – Every model has hydraulic brakes as standard with the option to upgrade to air brakes. Our ST/2000 model upwards has 406 x 120 10 stud commercial axles and spring drawbars as standard to ensure safe movement on the road. Dropped axles are also standard on these larger models to lower the centre of gravity and improve stability. -
Lights – Lights are also standard on all models with the option to upgrade to LED lights and fit a LED beacon. -
Pump – Either an 8,000ltr, 10,000ltr or 12,000ltr Hertell pump is standard on our tankers to ensure fast filling and discharging of material. There is also an option to fit a hydraulic drive pump or Garda pump depending on the application of the tanker. -
Dual Slurry Trap System – The entire range benefits from our dual protection system. The first line of protection is a specially designed double-ball set-up in the tank that stops the vacuum once it has reached a certain level. If any froth should manage to by-pass this system then there is a slurry trap in the large syphon box to catch any residue. -
Valves – Every model has a hand operated side valve as standard, which can also be positioned on the rear to allow for easy filling. It is also possible to specify a different position for filling as an option. -
Gauges & Sight-glasses – All our models have a liquid filled 75mm gauge to provide accurate pressure readings and ensure safe loading of the tank. Furthermore two sight-glasses at the front and rear of the tanker allow the operator to know when the tank is full. -
Paint Finish – Since November 2011 we have shot-blasted, this is acknowledged in the paint industry as the best possible method for preparing steel for painting. The shot-blasting creates a profile for the paint to adhere to, improving adhesion and in turn the protection offered to the steel. Our five man team of trained sprayers then use the latest spraying equipment to finish our products with a dual layer paint finish. Every machine is finished with 80 microns of high-build primer and 50 microns of gloss polyurethane; this combination provides excellent protection and a high-quality finish. -
Delivery – Marshall Trailers uses a computerized build system to plan production to ensure that machines are delivered on time. The final stage of delivery is undertake by our two artic lorries, a 7.5ton rigid lorry and a number of other haulage partners. -
Spare Parts – Marshall Trailers has a full selection of spare parts for all our ranges, most of which can be dispatched immediately. In some cases we have spares for machines dating back forty years, which gives you peace of mind when buying a Marshall that you will be properly supported well into the future.
-
-
Overview
Features at a Glance
- A quality 8000L Hertell pump
- Standard 6mm steel tank (ensures a long lifespan)
- Standard 6” side valve (with interchangeable rear mounting position)
- Liquid filled 75mm gauge (allows for accurate pressure readings)
- Fully integrated lights
- Integral design chassis (ensures no fatigue that can produce premature cracking)
- Tanks that hold the stated capacity (even the LGP cut in tanks are increased in size to compensate for the cut out part)
- Genuine Marshall Spares – a full collection of spares are available for all models in the range

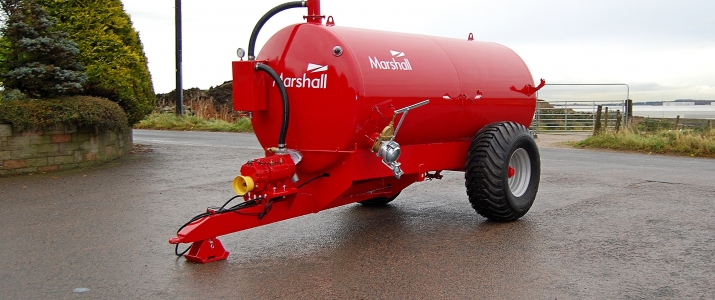

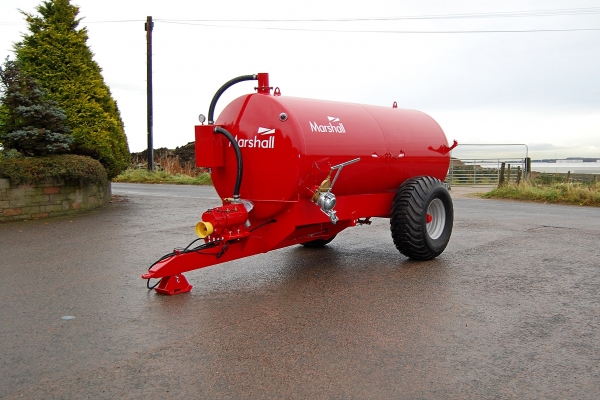

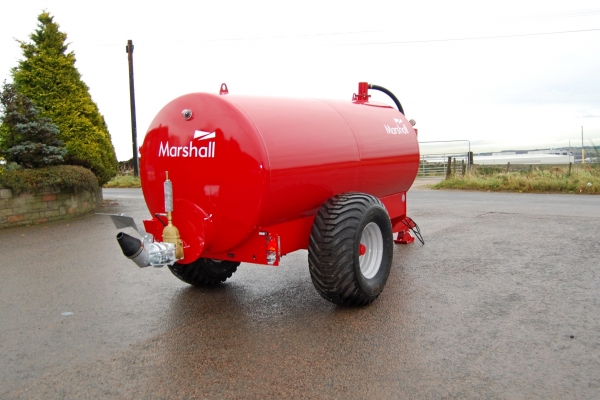

The Marshall ST1600 combines an excellent carrying capacity with respectable manoeuvrability and ease of use. It also has the added benefit of being fitted with 550 - 60 x 22.5 floatation tyres which are fantastic on soft ground, reducing the possibility of the tanker becoming stuck.
All Marshall tankers have an integral chassis design to reduce stress on the tank and prevent premature cracking. In addition the tank is constructed from 6mm steel, which improves durability and increases the lifespan of the tanker. The tank has also been measured to ensure that it will hold its stated capacity and customers receive exactly what they paid for. The ST1600 is also fitted with a standard 6” side valve that is interchangeable with another rear mounting position, allowing flexibility when loading. The standard 8000L Hertell pump provides quick and efficient loading of the tanker, while combining reliability and durability.
The ST1600 is also fitted with hydraulic brakes and lights, which are fully integrated, as standard. This ensures it is safe to operate and complies with all current health and safety legislation.
The standard features and perfect blend between carrying capacity and manoeuvrability mean the ST1600 is a customer favourite.
-
Specification & Prices
ST-1200 ST-1400 ST-1600 ST-1800 ST-2000 ST-2300 ST-2550 ST-3000 ST-3500 Price £11,500 £13,000 £14,800 £15,600 £22,500 £24,000 £25,600 £26,500 £31,000 Standard Tyre Size 385 - 65 x 22.5 385 - 65 x 22.5 550 - 60 x 22.5 550 - 60 x 22.5 750/60 - 30.5 750/60 - 30.5 750/60 - 30.5 385 - 65 x 22.5 385 - 65 x 22.5 Axle 70mm 6 stud 80mm 8 stud 80mm 8 stud 80mm 8 stud 120mm 10 stud High Speed Commercial Drop-axle 120mm 10 stud High Speed Commercial Drop-axle 120mm 10 stud High Speed Commercial Drop-axle 120mm 10 stud High Speed Commercial Tandem 120mm 10 stud High Speed Commercial Tandem Brakes 300 x 60 350 x 90 350 x 90 350 x 90 420 x 180 S Cam 420 x 180 S Cam 420 x 180 S Cam 420 x 180 S Cam 420 x 180 S Cam Volume 1220 gal / 5500 ltr 1400 gal / 6300 ltr 1550 gal / 7000 ltr 1800 gal / 8200 ltr 2150 gal / 9800 ltr 2340 gal / 10650 ltr 2560 gal / 11600 ltr 3000 gal / 13640 ltr 3500 gal / 15910 ltr Overall Width (Standard Wheels) 7' 5" / 2.27m 7' 11" / 2.42m 8' 6" / 2.59m 8' 6" / 2.59m 9' 4" / 2.84m 9' 8" / 2.94m 9' 8" / 2.94m 7' 8" / 2.32m 7' 8" / 2.32m Overall Height (Standard Wheels) 8' 3" / 2.5m 8' 3" / 2.5m 8' 6" / 2.59m 8' 6" / 2.59m 8' 6" / 2.59m 8' 6" / 2.59m 8' 6" / 2.59m 9' 10" / 3m 9' 10" / 3m Side Valve Standard Standard Standard Standard Standard Standard Standard Standard Standard Tank Thickness 6mm 6mm 6mm 6mm 6mm 6mm 6mm 6mm 6mm Lights & Brakes Standard Standard Standard Standard Standard - Dual Lights Standard - Dual Lights Standard - Dual Lights Standard - Dual Lights Standard - Dual LED Lights Drum Diameter 5' 3" 5' 3" 5' 3" 5' 3" 5' 3" 6' 6' 6' 6' Pump - Hertell 8000 ltr 8000 ltr 8000 ltr 8000 ltr 10000 ltr 10000 ltr 10000 ltr 10000 ltr 12000 ltr 6in Hose 15' 15' 15' 15' 15' 20' 20' 20' 20' Unladen Weight 1945 kg 2120 kg 2330 kg 2510 kg 3660 kg 3890 kg 4140 kg 4800 kg 5350 kg OPTIONAL EQUIPMENT 16/70 x 20 Track Tread £625 / (DF-0.5) £625 / (DF-0.5) N/A N/A N/A N/A N/A N/A N/A 550 - 45 x 22.5 Fitted 8 stud £997 / (DF-2) N/A N/A N/A N/A N/A N/A N/A N/A 550 - 60 x 22.5 Fitted 8 stud N/A £777 / (DF-1) Standard Standard N/A N/A N/A N/A N/A 560 - 45 x 22.5 N/A N/A N/A N/A N/A N/A N/A £2,530 / (DF-1) N/A 560 - 60 x 22.5 N/A N/A N/A N/A N/A N/A N/A £4,594 £3,180 Spring Drawbar £845 £845 £845 £845 Standard Standard Standard Standard Standard Swivel Hitch £195 £195 £195 £195 Standard Standard Standard Standard Standard Tanker Hydraulic Hatch £1,180 £1,180 £1,180 £1,180 £1,180 £1,180 £1,180 £1,180 £1,180 Full Opening Rear Door £1,585 £1,585 £1,585 £1,585 £1,585 £1,585 £1,585 £1,585 £1,585 Mudguards £417 £417 £417 £417 Standard Standard Standard £575 £575 10,000 ltr Pump Hertell N/A £475 / (DF-1) £475 / (DF-1) £475 / (DF-1) Standard Standard Standard Standard N/A Hydraulic Pump £950 / (DF-1.5) £950 / (DF-1.5) £950 / (DF-1.5) £950 / (DF-1.5) £950 / (DF-1.5) £950 / (DF-1.5) £950 / (DF-1.5) £950 / (DF-1.5) £950 / (DF-1.5) Garda Pump (8,000l) c/w Spreader £5,028 £5,028 £5,028 £5,028 £5,028 £5,028 £5,028 £5,028 £5,028 Spreader / Rain Gun Only £2,400 £2,400 £2,400 £2,400 £2,400 £2,400 £2,400 £2,400 £2,400 90 degree Bend Complete £195 / (DF-0.25) £195 / (DF-0.25) £195 / (DF-0.25) £195 / (DF-0.25) £195 / (DF-0.25) £195 / (DF-0.25) £195 / (DF-0.25) £195 / (DF-0.25) £195 / (DF-0.25) Extra Complete Hand Operated Valve £357 / (DF-0.25) £357 / (DF-0.25) £357 / (DF-0.25) £357 / (DF-0.25) £357 / (DF-0.25) £357 / (DF-0.25) £357 / (DF-0.25) £357 / (DF-0.25) £357 / (DF-0.25) Wash Down Hose £261 / (DF-0.25) £261 / (DF-0.25) £261 / (DF-0.25) £261 / (DF-0.25) £261 / (DF-0.25) £261 / (DF-0.25) £261 / (DF-0.25) £261 / (DF-0.25) £261 / (DF-0.25) Quick Attach Coupling £189 / (DF-0.5) £189 / (DF-0.5) £189 / (DF-0.5) £189 / (DF-0.5) £189 / (DF-0.5) £189 / (DF-0.5) £189 / (DF-0.5) £189 / (DF-0.5) £189 / (DF-0.5) Pump Hydraulic Changeover £240 / (DF-1) £240 / (DF-1) £240 / (DF-1) £240 / (DF-1) £240 / (DF-1) £240 / (DF-1) £240 / (DF-1) £240 / (DF-1) £240 / (DF-1) Marshall Easy Connect £1,599 £1,599 £1,599 £1,599 £1,599 £1,599 £1,599 £1,599 £1,599 Air/Oil Brakes N/A N/A N/A N/A £1,360 £1,360 £1,360 £1,517 £1,517 LED Tail Lights £175 / (DF-0.5) £175 / (DF-0.5) £175 / (DF-0.5) £175 / (DF-0.5) Standard Standard Standard Standard Standard LED Beacon £145 / (DF-0.25) £145 / (DF-0.25) £145 / (DF-0.25) £145 / (DF-0.25) £145 / (DF-0.25) £145 / (DF-0.25) £145 / (DF-0.25) £145 / (DF-0.25) £145 / (DF-0.25) Sight Tube £450 £450 £450 £450 £450 £450 £450 £450 £450 - Owners Info
-
FAQ's
-
What are the current regulations on agricultural trailer brakes?
Read moreWhat are the current regulations on agricultural trailer brakes?
The law currently states that trailers travelling below 25mph have to have a braking efficiency of at least 25% (UK Road Vehicle Construction & Use Regulations). Above this speed it is unclear exactly what requirements an agricultural trailer has to meet, whether it is commercial braking requirements or still simply a 25% braking efficiency.
There is currently EU legislation under discussion which would implement a 50% braking efficiency for agricultural trailers, but this has been already been debated for a number of years without it becoming law. It seems unlikely that it will be implemented within the next few years, if ever, since this would impose higher braking standards than required on commercial vehicles.
Marshall products are fitted with hydraulic brakes as standard and on average provide a braking efficiency of 35%, which exceeds the current legal requirements. This impressive baseline performance is achieved by fitting high quality axles supplied by the world’s leading axle manufacturer, combined with enlarged 25mm brake cylinders and durable 2 wire hoses.
Take time to examine the specifications of our models and take note of the brake sizes and axles sizes. In particular notice we fit commercial 420 x 180 10 stud axles as standard on our QM/14, QM/16, QM/1600 and QM1800 models; not 10 stud industrial axles, which provide significantly reduced performance. The way to tell the difference between these axles is a commercial axle uses an S-cam brake rode while an industrial axle uses a flat-cam brake rod.
If a customer requires enhanced braking performance we also offer air brakes with loading sensing, full ABS systems and a number of axle upgrades. This guarantees a Marshall trailer can meet current legal requirements now and any EU legislation that could potentially be introduced in the future.
-
What can you do prolong the life of your slurry tanker?
Read moreWhat can you do prolong the life of your slurry tanker?
The answer to this question comes in two parts; the first is to operate the tanker correctly and the second is to follow the correct maintenance procedures.
When filling the tanker only run the PTO up to the speed that the tanker begins to fill; increasing PTO speed beyond this point does not decrease the filling time of the tanker. This prevents the pump working unnecessarily and reduces the chances of overfilling. It is also important to note that the tanker should not be filled beyond the level of the sight glass as doing so can potentially damage the pump. Marshall tankers are fitted with two slurry traps to minimise the risk of slurry reaching the pump if the tanker is overfilled. The first of these traps is located inside the main tank and the second is located in the syphon box mounted on the front of the tanker. The valve at the bottom of the syphon box should be opened regularly to allow any slurry to escape before it overflows the trap and reaches the pump.
The tanker PTO should be used in 540RPM mode and PTO speed should not exceed 350RPM. The tanker should also not be turned while the PTO is running and the pump should only be engaged and disengaged at low revs. In addition the oilers on the pump have to be set at one drop every one to two seconds to ensure the pump operates smoothly.
Maintenance wise it is extremely important to check the oil levels on the pump regularly, as the oil fed to the pump by the oilers is completely lost. This can be checked via the dip-stick and should be kept above the mark; SAE 20 or similar oil should be used. The gearbox at the front of the pump should also be kept filled with SAE 90 oil to the level on the sight glass located on the side of the pump.
To help prolong the life of the pump it is advisable, after every 25 working hours, to pass diesel through it. This can be done by placing the pump in the pressure position and holding the container of diesel up to the exhaust on the pump the diesel will be sucked up through the pump and will wash out the entire pump. KEEP THE PUMP TURNING for around 30 seconds then change the pump from pressure to vacuum – note the foul diesel will pass out through the exhaust so some means of catching this is advisable to enable you to dispose of this correctly. Continue the pump running for around 30 seconds this greatly prolongs not only the pumps life but coats the top shut off valve. This procedure MUST only be completed when the pump is cold and DO NOT STOP THE PUMP UNTIL the diesel has dispersed fully.
This article is not a replacement or substitute for the standard machine handbook, a copy of which is available here.
-
-
Additional Equipment
Extra
-
No Wheels
Part No.
0000£0.00
Removes the standard wheel option so the machine is supplied without wheels.
-
Mudguards
Part No.
1301-1£417.00
Reduces spray and dirt from the road hitting the trailer body. Essential option to allow 550 or 560 wheels to be fitted.
-
Air/Oil Brakes c/w Load Sensin
Part No.
0203-4Dealer Fit - 4hrs
£1,360.00
Ideal if the machine is frequently used on the road, provides improved braking for higher speeds. Automatic load sensing available on springs & manual load sensing available on rockers.
-
Spring Drawbar
Part No.
0301-1£845.00
Reduces tractor bounce when operating machine on the road. This is also height adjustable to match the tractor hitch.
-
Swivel Hitch
Part No.
1202-1£195.00
Reduces wear on the tractor pick-up hitch.
-
Hitch Lock
Part No.
1203Dealer Fit - 0.25hrs
£98.00
Allows the machine to be secured against theft. Padlock is not included.
-
Full Opening Rear Door
Part No.
0406£1,585.00
Allows the tanker to easily be washed out to prevent the build up of material in the bottom of the tank.
-
No PTO Shaft
Part No.
2000£0.00
Removes the standard PTO option from the machine.
-
6" Suction Hose - 20ft
Part No.
2714-1Dealer Fit - 0.5hrs
£150.00
Increases the length of the standard suction hose to 20ft.
-
Rain Gun Spreader
Part No.
2731£2,400.00
Hydraulically controlled spreader unit that uses the standard pump pressure to spread.
-
No 6" Suction Hose
Part No.
2732£0.00
Removes the standard 6" suction hose from the tanker.
-
Dribble Bar Preparation
Part No.
2801£480.00
Allows dribble bars to be fitted to the tanker in the future.
-
90 Degree Bend
Part No.
2301Dealer Fit - 0.25hrs
£195.00
Angles the slurry discharge to the side of the tanker for use in wet conditions.
-
Hand Op. Valve - N/S Rear
Part No.
2302Dealer Fit - 0.25hrs
£294.00
Assists with loading of the tanker. Positioned on the nearside, rear of the tanker.
-
Ext. Hyd. Op. Valve
Part No.
2303Dealer Fit - 1hrs
£413.00
Extra hydraulically operated 6" valve. This is in addition to the standard hydraulic valve that controls the flow of slurry to the rear spread plate.
-
Wash Down Hose - Bauer Attach
Part No.
2304Dealer Fit - 0.25hrs
£261.00
A useful hose attachment for general washing down jobs.
-

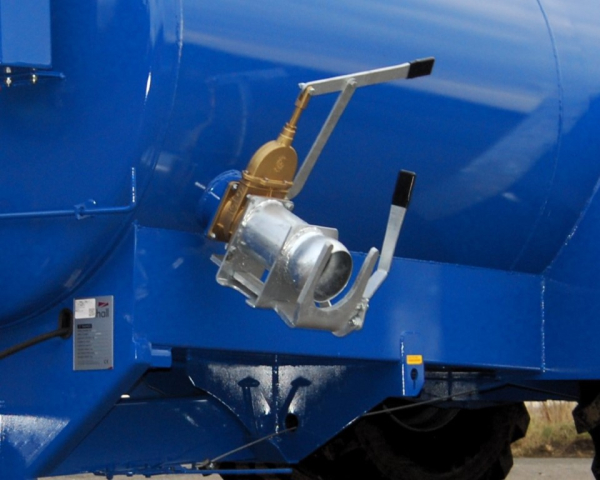

Quick At. Coupling - N/S Front
Part No.
2305-1Dealer Fit - 0.25hrs
£189.00
Allows the hose to be attached with the use of one hand. Please note that price is to upgrade standard side gate valve.
-
Quick At. Coupling - N/S Rear
Part No.
2306Dealer Fit - 0.25hrs
£410.00
Allows the hose to be attached with the use of one hand. Please note that price includes fitting manual gate valve and quick attach coupling to nearside, rear of tanker.
-
Easy-connect c/w Hyd Change NS
Part No.
2307Dealer Fit - 6hrs
£1,599.00
A simple and quick way to load your tanker without leaving the tractor. Extend the side grab, drive up to the hose until it enters the grab and then hydraulically pull the hose into place. Only available when filling the tanker from the side valve.
-
Sight Tube
Part No.
2309£450.00
Replaces standard sight glass for improve visibility of load level.
-
Hand Op. Valve - O/S Rear
Part No.
2310Dealer Fit - 0.25hrs
£294.00
Assists with loading of the tanker. Positioned on the offside, rear of the tanker.
-
Hand Op. Valve - O/S Front
Part No.
2312Dealer Fit - 0.25hrs
£294.00
Assists with loading of the tanker. Positioned on the offside, front of the tanker.
-
Quick At. Coupling - O/S Front
Part No.
2313Dealer Fit - 0.25hrs
£410.00
Assists with loading of the tanker. Positioned on the offside, front of the tanker.
-
Quick At. Coupling - O/S Rear
Part No.
2314Dealer Fit - 0.25hrs
£410.00
Allows the hose to be attached with the use of one hand. Please note that price includes fitting manual gate valve and quick attach coupling to offside, rear of tanker.
-
Easy-connect c/w Hyd Change OS
Part No.
2315Dealer Fit - 6hrs
£1,599.00
A simple and quick way to load your tanker without leaving the tractor. Extend the side grab, drive up to the hose until it enters the grab and then hydraulically pull the hose into place. Only available when filling the tanker from the side valve.
-
2" Ball Valve - Bauer Attach
Part No.
2316Dealer Fit - 0.25hrs
£275.00
This clamps to any 6" male bauer coupling and allows a variety of hoses to be connected.
-
No Hand Op. Valve - N/S Front
Part No.
2318£0.00
Removes the N/S Front Valve option.
-
60mm Hose - Bauer Attach
Part No.
2319Dealer Fit - 0.25hrs
£261.00
This clamps to any 6" male bauer coupling and comes complete with a 60mm hose. Ideal for clearing drains.
-
6" Suction Hose Mesh Strainer
Part No.
2321Dealer Fit - 0.25hrs
£195.00
Prevents stones or other debris from being sucked up during filling.
-
Tanker Hydraulic Hatch
Part No.
2101£1,180.00
Allows easy filing of tanker from pumps or overhead storage.
-
Tanker Horizontal Hyd Hatch
Part No.
2102£3,250.00
Allows easy filing of tanker from pumps or overhead storage.
-
6" Hose Carrier - O/S
Part No.
3101£130.00
Adds extra hose carriers to allow hose storage on both sides of the tanker.
-
No Hose Carriers
Part No.
3102£0.00
Removes all hose carriers from the tanker.
-
No Pump
Part No.
2200£0.00
Removes the standard vacuum pump from the tanker.
-
Garda Pump c/w Spreader
Part No.
2201£5,028.00
Can be used for high pressure spreading of slurry over hedges or for dust reduction in quarries.
-

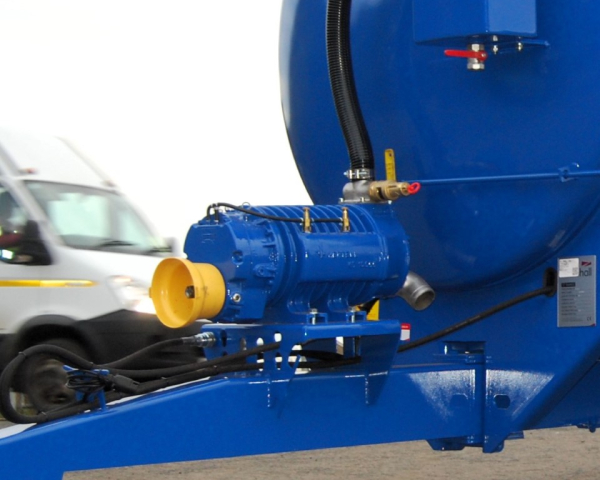

10,000ltr Pump
Part No.
2203-1Dealer Fit - 2hrs
£475.00
Allows tankers to be filled quicker.
-
Hydraulic Pump
Part No.
2204Dealer Fit - 2hrs
£950.00
Removes the requirement of a PTO Shaft. Improves safety and removes the possibility of damaging a PTO shaft.
-
Pump Hydraulic Changeover
Part No.
2205Dealer Fit - 1hrs
£240.00
Allows the pump to change between pressure and vacum hydraulically.
-
LED Lights
Part No.
2405-3Dealer Fit - 1hrs
£205.00
Improved visibility of the machine and reduces maintenance of lights.
-
LED Beacon
Part No.
2404-2Dealer Fit - 1hrs
£145.00
Ideal if the machine is frequently used on the road.
-

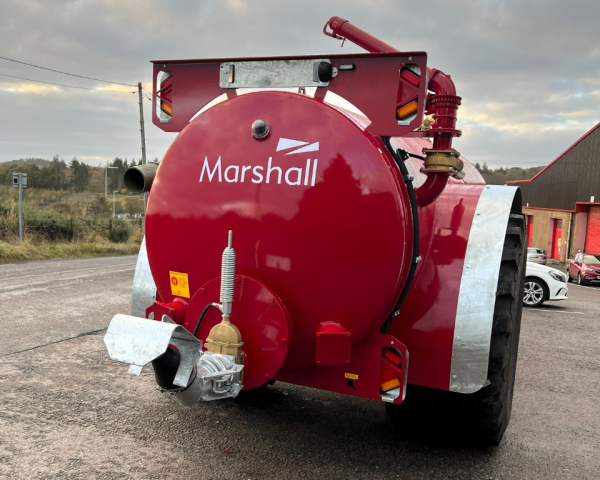

Dual Lights
Part No.
2410£500.00
These lights further improve the visibility of the machine and are positioned to prevent them being covered with mud or slurry.
-
Colour - Marshall Blue
Part No.
2501£0.00
Bespoke colour option, allowing customer to customise the trailer.
-
Colour - Maserati Blue
Part No.
2502£375.00
Bespoke colour option, allowing customer to customise the trailer.
-
Colour - John Deere Green
Part No.
2503-2£375.00
Bespoke colour option, allowing customer to customise the trailer.
-
Colour - Claas Green
Part No.
2504£375.00
Bespoke colour option, allowing customer to customise the trailer.
-
Colour - Fendt Green
Part No.
2505£375.00
Bespoke colour option, allowing customer to customise the trailer.
-
Colour - Gloss Black
Part No.
2506£375.00
Bespoke colour option, allowing customer to customise the trailer.
-
Colour - Ferrari Red
Part No.
2507£375.00
Bespoke colour option, allowing customer to customise the trailer.
-
Colour - Case Red
Part No.
2508£375.00
Bespoke colour option, allowing customer to customise the trailer.
-
Colour - Kubota Orange
Part No.
2509£375.00
Bespoke colour option, allowing customer to customise the trailer.
-
Colour - JCB Yellow
Part No.
2510£375.00
Bespoke colour option, allowing customer to customise the trailer.
-
Colour -Highway/Traffic Yellow
Part No.
2511£375.00
Bespoke colour option, allowing customer to customise the trailer.
-
Colour - White
Part No.
2512£375.00
Bespoke colour option, allowing customer to customise the trailer.
-
Colour - Gunmetal Grey
Part No.
2513£375.00
Bespoke colour option, allowing customer to customise the trailer.
-
Delivery
Part No.
9998£350.00
Delivery charge to any UK mainland address.
-
